Description
Caractéristiques
-
Optimized for Spraying Industry: Designed specifically for paint spraying equipment, air-assisted spraying systems, and paint line fluid/air supply, delivering stable pressure without pulsating.
-
Integrated Safety & Anti-Static Grounding: Built-in grounding wire prevents static electricity accumulation caused by high-velocity paint/air friction, eliminating spark hazards in flammable spraying environments.
-
High-Pressure Resistance: High-tensile textile-braided layer enables superior pressure resistance (up to 1.6 MPa) while maintaining excellent flexibility in manual or robotic spraying operations.
-
Polyéther PUR Construction: Made from premium polyether-based polyurethane (Hardness: 95–98A) for exceptional hydrolysis, chemical, and solvent resistance. Completely halogen-free and RoHS compliant.
Applications
-
Paint & Coating Spraying: Industrial manual paint guns, automated spray booths, paint circulation lines, and airbrushing systems.
-
Pneumatic Tools & Automation: High-reliability compressed air supply for spray guns, pneumatic valves, and robotic arms.
-
Fluid & Water Transfer: Recirculation systems, pure water lines, and light chemical fluid delivery.
Custom sizes, colors, and tailored lengths are available upon request.

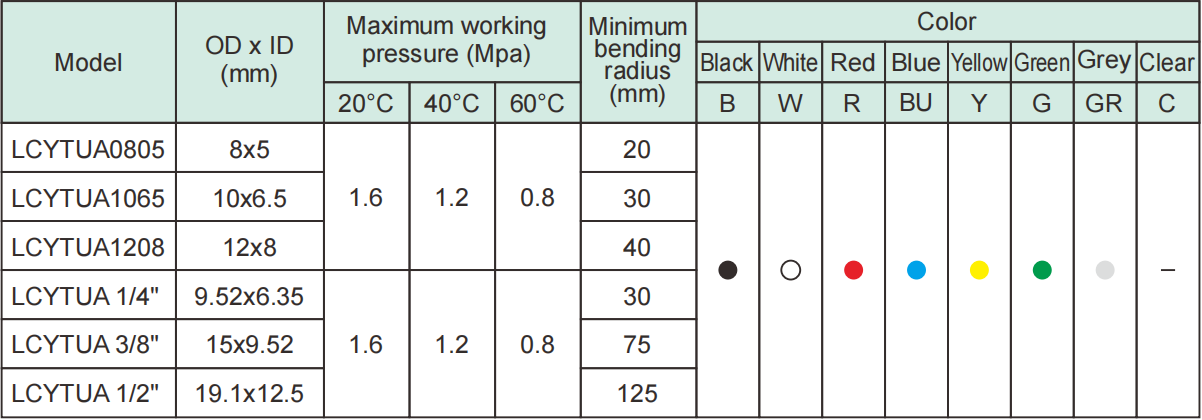

Working Conditions & Tolerances

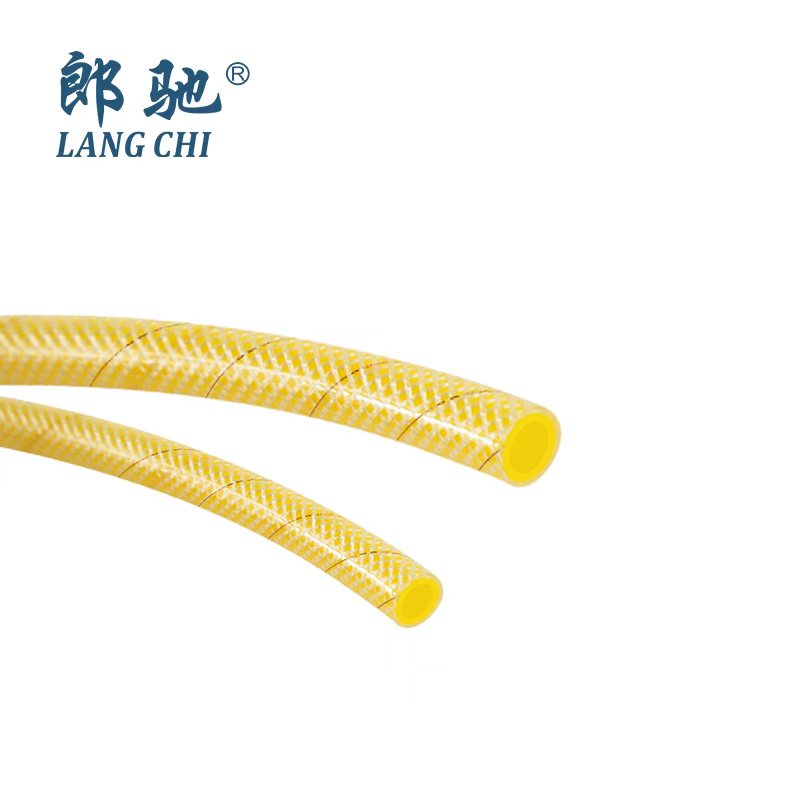

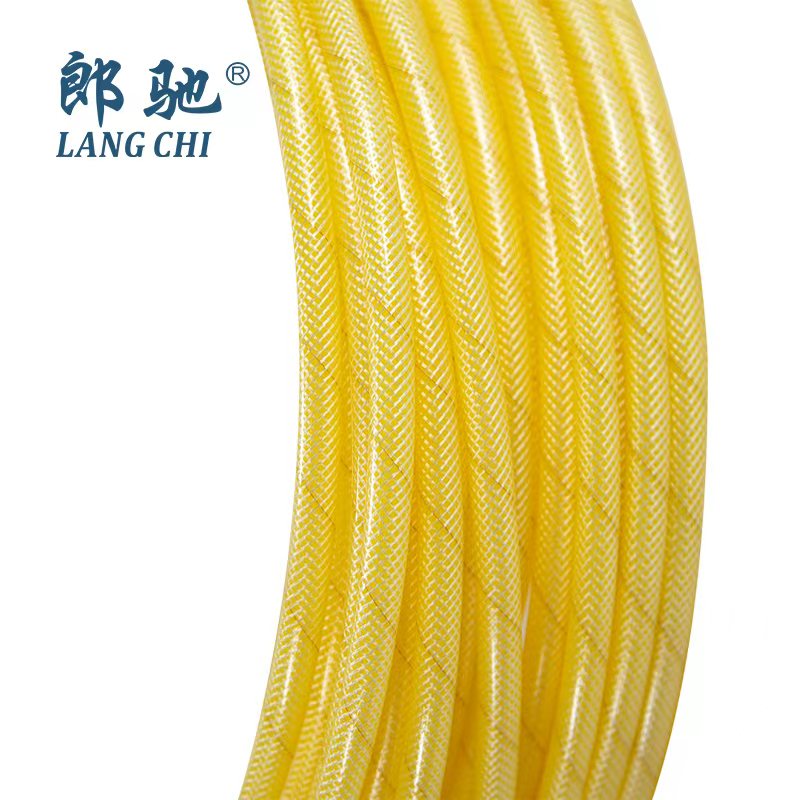

Pressurized Reinforced PU Hose
-
Fluid Media: Compressed Air, Water, Non-corrosive Paint Fluids
-
Working Temperature Range: Air: -40°C to +70°C | Water: 0°C to +40°C
-
Hose OD Tolerance: 8–12mm: ±0.15mm | 14–19mm: ±0.20mm
-
Conditionnement: Standard 100m rolls wrapped in protective plastic film or packaged in cartons.
Foire aux questions (FAQ)
1. Why is the Pressurized Reinforced PU Hose ideal for the paint spraying industry?
The LCYTUA hose combines high pressure tolerance (1.6 MPa) with lightweight flexibility, allowing spray gun operators or robotic spraying arms to move freely without hose memory or kinking. Additionally, its anti-static grounding structure is critical for explosion safety in spray booths.
2. How does the built-in grounding conductor protect spray operations?
Friction from fast-flowing air or liquid coating can build up high static charges. The integrated grounding wire safely dissipates this static electricity to prevent sparks that could ignite volatile paint vapors or solvent fumes.
3. What is the advantage of polyether PUR over standard polyurethane in spray environments?
Polyether PUR provides superior hydrolysis resistance and anti-microbial properties, preventing the hose wall from cracking, swelling, or degrading when exposed to moist compressed air or water-borne paints.
